UVC-AI-THETA UniFi Protect 8/9MP 360* & Wide Angle Camera by Ubiquiti Networks

UVC-AI-THETA UniFi Protect  8/9MP IP Camera
Roll over for magnification

Additional Pictures and Information Below - Click to View


Our Price: $319.95


AVAILABILITY: IN STOCK NOW may ship from other location
Product Code: UVC-AI-THETA
Qty:

Description Technical Specs

A complete AI Theta system that discreetly secures any space while maintaining a warm and inviting atmosphere.

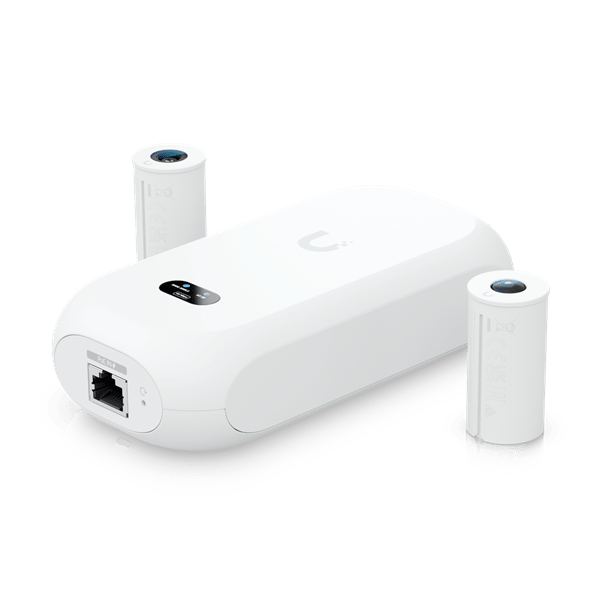

Kit includes (1) AI Theta Hub, (1) Wide-Angle Lens, (1) 360 Lens, and (2) Standard Flush Mounts
4K (9MP) resolution and ultra-wide 360° view with 360 Lens
4K (8MP) video resolution with Wide-Angle Lens
Advanced AI: Detect people, read license plates, and more*
Minimal footprint with lens separated from the camera body
PoE powered hub that connects to lens with included cable
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses
Model UVC-AI-THETA by Ubiquiti Networks
Features
Mechanical
DimensionsUVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
UVC-AI-Theta-Lens/360: Ř22.8. x 43.5 mm (Ř0.9 x 1.7”)
WeightUVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure materialUVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materialUVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable jacket enclosure materialPVC
Cable length1 m (3.3 ft)
Cable diameter3.7 mm (0.15")
Cable jacket materialWoven fabric
Cable weight18 g (0.63 oz)
Cable connector typeTheta proprietary
Optics
SensorUVC-AI-Theta-Lens: 8MP CMOS
UVC-AI-Theta-Lens-360: 12MP CMOS
LensFixed focal length
View angleUVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
Video
ResolutionUVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3)
UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)
Max. frame rateUVC-AI-Theta-Lens: 24 FPS
UVC-AI-Theta-Lens-360: 20 FPS
Image settingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
ProcessorQuad-core Arm® Cortex®-A53 based chip
Networking interfaceGbE RJ45 port
Max. power consumption12.5W
Power methodPoE
Power supply5V DC, 0.5A
Supported voltage range37—57V DC
Output power5V DC, 1A per port
LEDR/G/B/W
ButtonFactory reset
MountingWall, ceiling mount
Ambient operating temperature-20 to 40° C (-4 to 104o F)
Ambient operating humidity10 to 90% noncondensing
CertificationsFCC, IC, CE
