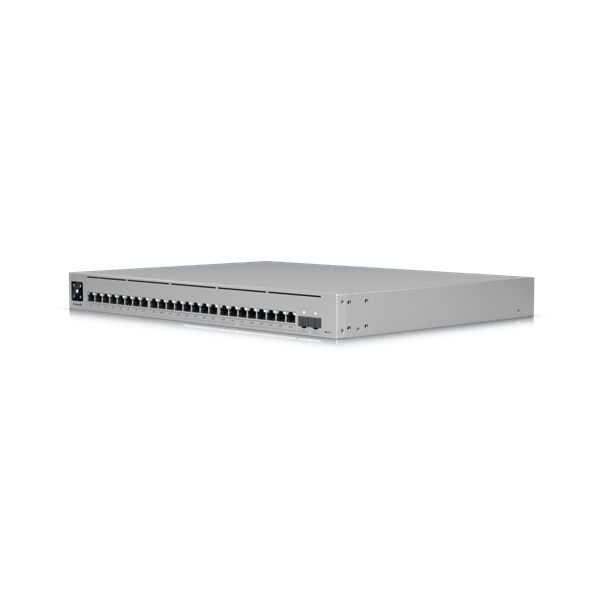

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks - Image 1 of 0

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks - Image 2 of 0

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks - Image 3 of 0

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks - Image 4 of 0

USW-ENTERPRISE-24-POE 24-Port, 2.5GbE, SFP+, POE+, Layer 3 by Ubiquiti Networks - Image 5 of 0

USW-ENTERPRISE-24-POE, Layer 3, 2.5GbE, POE+ SFP+ by Ubiquiti Networks

Name: USW-ENTERPRISE-24-POE, Layer 3, 2.5GbE, POE+ SFP+ by Ubiquiti Networks
Brand: Ubiquiti Networks
SKU: USW-ENTERPRISE-24-POE
Price: 799.95 USD
Availability: InStock

Product Code: USW-ENTERPRISE-24-POE

IN STOCK NOW may ship from other location

Qty:

USW-ENTERPRISE-24-POE (400w)
• (1) 1.3" LCM color touchscreen with AR switch management
• (12) GbE, 802.3at PoE+ RJ45 ports
• (12) 2.5GbE, 802.3at PoE+ RJ45 ports
• (2) 10G SFP+ ports
• (1) USP RPS DC input

Model USW-ENTERPRISE-24-POE by Ubiquiti Networks

Overview
Dimensions
442 x 325 x 44 mm(17.4 x 12.8 x 1.7")
Port Layout
1 GbE RJ45
12 (All PoE+)
2.5 GbE RJ45
12 (All PoE+)
10G SFP+
2
Max. PoE Output
Up to PoE+
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Performance
Switching Capacity
124 Gbps
Total Non-Blocking Throughput
62 Gbps
Forwarding Rate
92 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
4,000
IPv4 Routes
1,000
Packet Buffer Size
4 MB
Layer 3 Features
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
PoE Ports
PoE+
24
Max. PoE Wattage per Port by PSE
PoE+
32W
Max. Power Consumption
60W (Excluding PoE Output)460W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
EthernetAR
Heat Dissipation (Excluding PoE Output)
204.72 BTU/hr
Weight
Without mounting brackets: 5.1 kg (11.3 lb)With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm(15.7-47.2")
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
