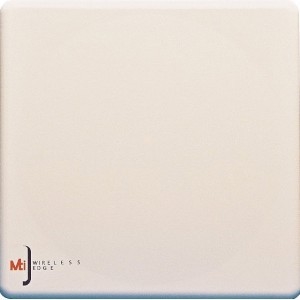

Wireless Edge Ltd. MT-463042/ND/B/P MTI 14dBi 90° 4x4 MU-MIMO 4.9-5.9GHz by MTI Wireless

MT-463042-ND-B-P
Roll over for magnification




Download Datasheet Here

Our Price: $138.95

AVAILABILITY: Usually Ships in 24 Hours
Product Code: MT-463042-ND-B-P
Qty:

Description

** SPECIFICALLY DESIGNED FOR USE WITH THE MIMOSA A5c **
  • REGULATORY COMPLIANCE RoHS, CE 0682
  • FREQUENCY RANGE 4.9-5.9 GHz
  • GAIN 14 dBi ± 0.5 dB
  • VSWR 1.5 : 1 (typ), 2:1 (max)
  • POLARIZATION Double Dual Linear ± 45°
  • -3dB ELEVATION BEAMWIDTH 7º (typ)
  • -3 dB AZIMUTH BEAMWIDTH 90° (typ)
  • ELEVATION SIDELOBE LEVEL -12 dB (typ.)
  • F/B RATIO -25 dB (typ)
  • CROSS POLARIZATION -15 dB (typ)
  • PORT TO PORT ISOLATION 20dB (typ)
Model MT-463042-ND-B-P by MTI Wireless
